Product Introduction

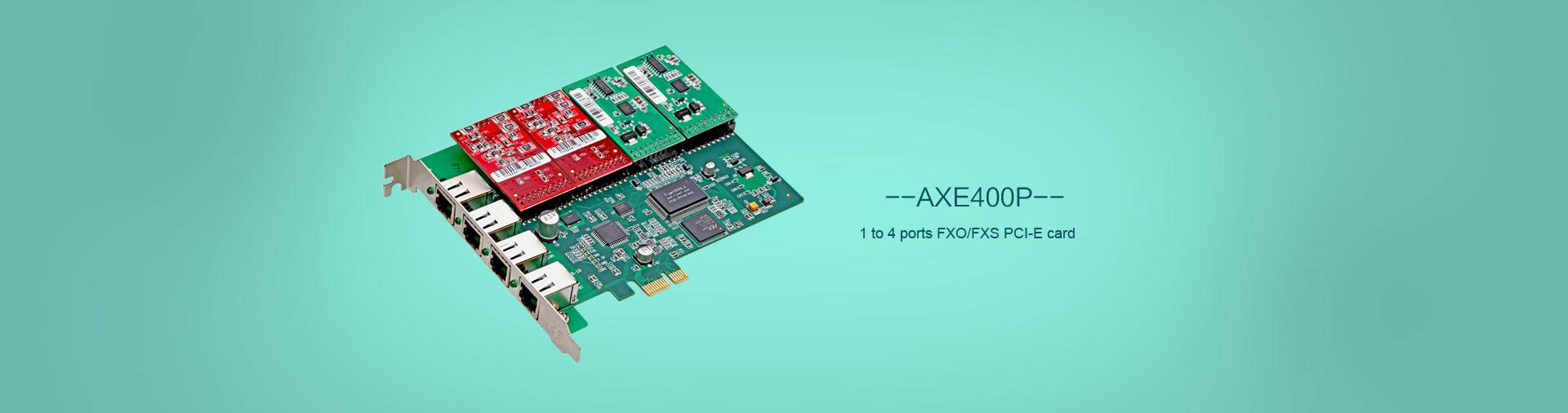

AXE400P is a telephony card working on open source Asterisk IP PBX system which supports 1 to 4 FXO or FXS ports, the ports
can be configured by different combination of modes on the mainboard.
Users can use AX400P to install open source and powerful Asterisk IP PBX system.

Features


PBX/Voicemail/IVR/Call Center/Call Park/Call Pickup/Call Transfer/Call Forward/Caller ID/Call Waiting/Call Conference.
Support 1 to 4 FXO/FXS channel,PCI slot. Support Trixbox , Elastix , Askozia
Support Asterisk ,Freeswitch , Dahdi , Zaptel Elastix certified

Specification


Hardware
500-Mhz Pentium III
64MB RAM
PCI-E slot
Operating system
Linux
Size
112mm (Height) × 134mm (Length)

Modules



•1-4 single ports FXS module:AX-110S

•1-4 single ports FOX module:AX-110X

Downloads


Firmware User manual Brochure Datasheet Quick installation guide Cautions


Comparison



  AXE400PL AX400P AXE800PN AXE4BL AXE2BL AXE1DL AXE2DL AXE4DL AXE4GN AXE2G4AN
 Channels 1-4
FXO/FXS
1-4
FXO/FXS
1-8
FXO/FXS
4 ISDN
BRI ports
2 ISDN
BRI ports
1 ISDN
PRI/E1/T/J1
ports
2 ISDN
PRI/E1/T/J1
ports
4 ISDN
PRI/E1/T/J1
ports
1-4 GSMports 1-2 GSM,
and1-4
FXO/FXS
ports
 PC interface PCI-E PCI PCI-E PCI-E PCI-E PCI-E PCI-E PCI-E PCI-E PCI-E
 Supported platform Asterisk ,
Freeswitch ,
Dahdi ,
Zaptel
Asterisk ,
Freeswitch ,
Dahdi ,
Zaptel
Asterisk ,
Freeswitch ,
Dahdi ,
Zaptel
Asterisk ,
Freeswitch ,
Dahdi ,
Zaptel
Asterisk ,
Freeswitch ,
Dahdi ,
Zaptel
Asterisk ,
Freeswitch ,
Dahdi ,
Zaptel
Asterisk ,
Freeswitch ,
Dahdi ,
Zaptel
Asterisk ,
Freeswitch ,
Dahdi ,
Zaptel
ATCOM
compiled
Asterisk/
Dahdi
version
ATCOM
compiled
Asterisk
/Dahdiversion
  Certification Elastix Elastix Elastix Elastix Elastix Elastix Elastix Elastix Elastix Elastix
  Full length Support Support Support Support Support Support Support Support Support Support
  Low profile Support No No Support Support Support Support Support No No
  Accessories No No 1 to 4 ports Splitter No No No No No Antenna Antenna,
1 to 4
ports
Splitter
  Modules Single
FXO/FXS
Module
AX110X/
AX110S
Single
FXO/FXS
Module
AX110X/
AX110S
Dual
FXO/FXS
Module
AX210X/
AX210S
No No E32L
Hardware
Echo
Canceller
DSP
E64L
Hardware
Echo
Canceller
DSP
E128L
Hardware
Echo
Canceller
DSP
GS module:
GX01N
GSM module:
GX01N;Dual
FXO/FXS
Module:
AX210X/
AX210S
  Dimension 140mm×64 mm 102mm×134mm 175mm×106mm 120mm×64mm 120mm×64mm 120mm×64mm 120mm×64mm 175mm×64mm 175mm×106mm 175mm×106mm
  Operating system Linux
  Application PBX, gateways, voice mail, IVR / call center, call hold, then grab, call forwarding, call transfer, caller caller display, call waiting queues, conferencing systems.

----------------------------------------
